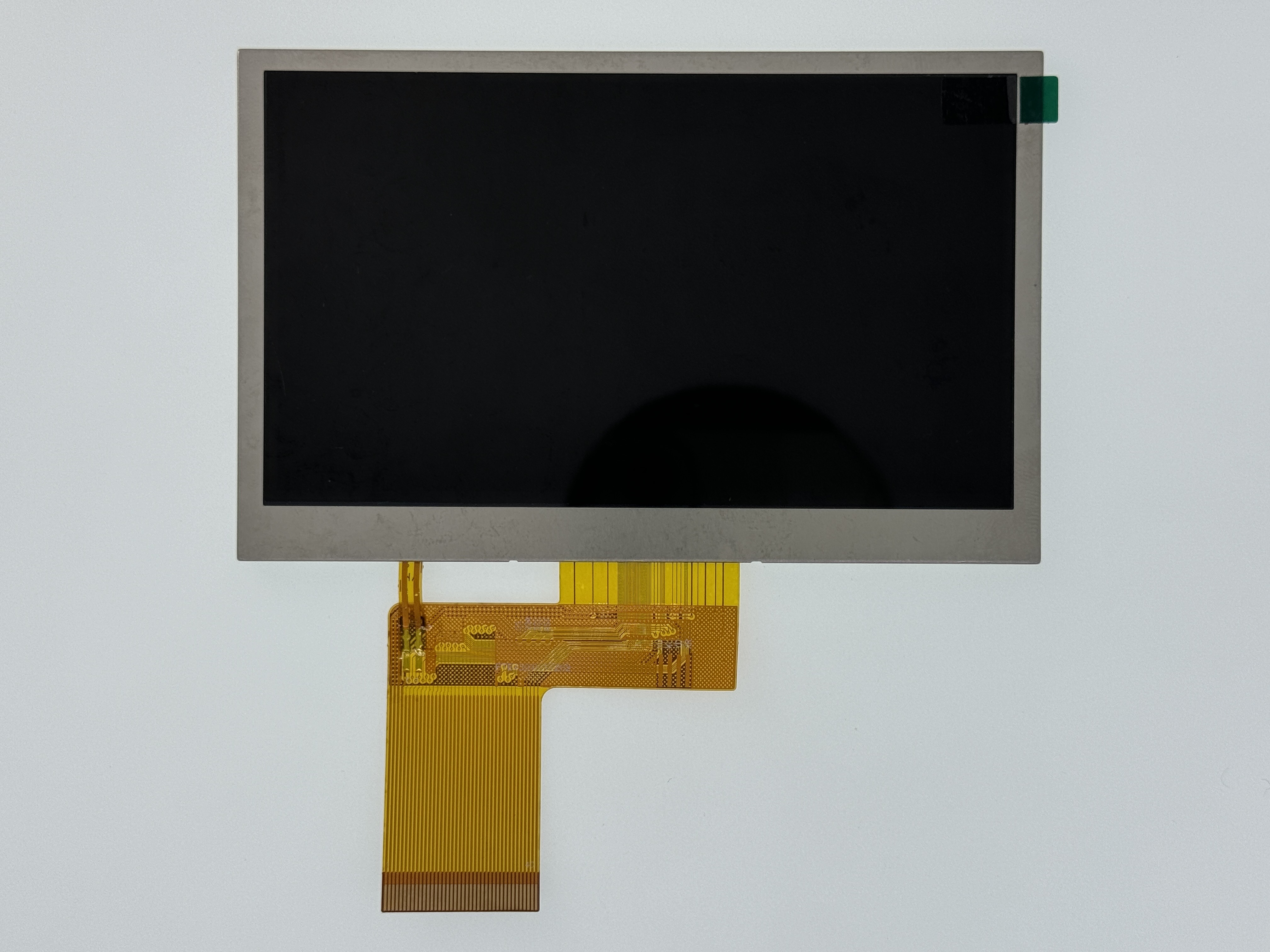

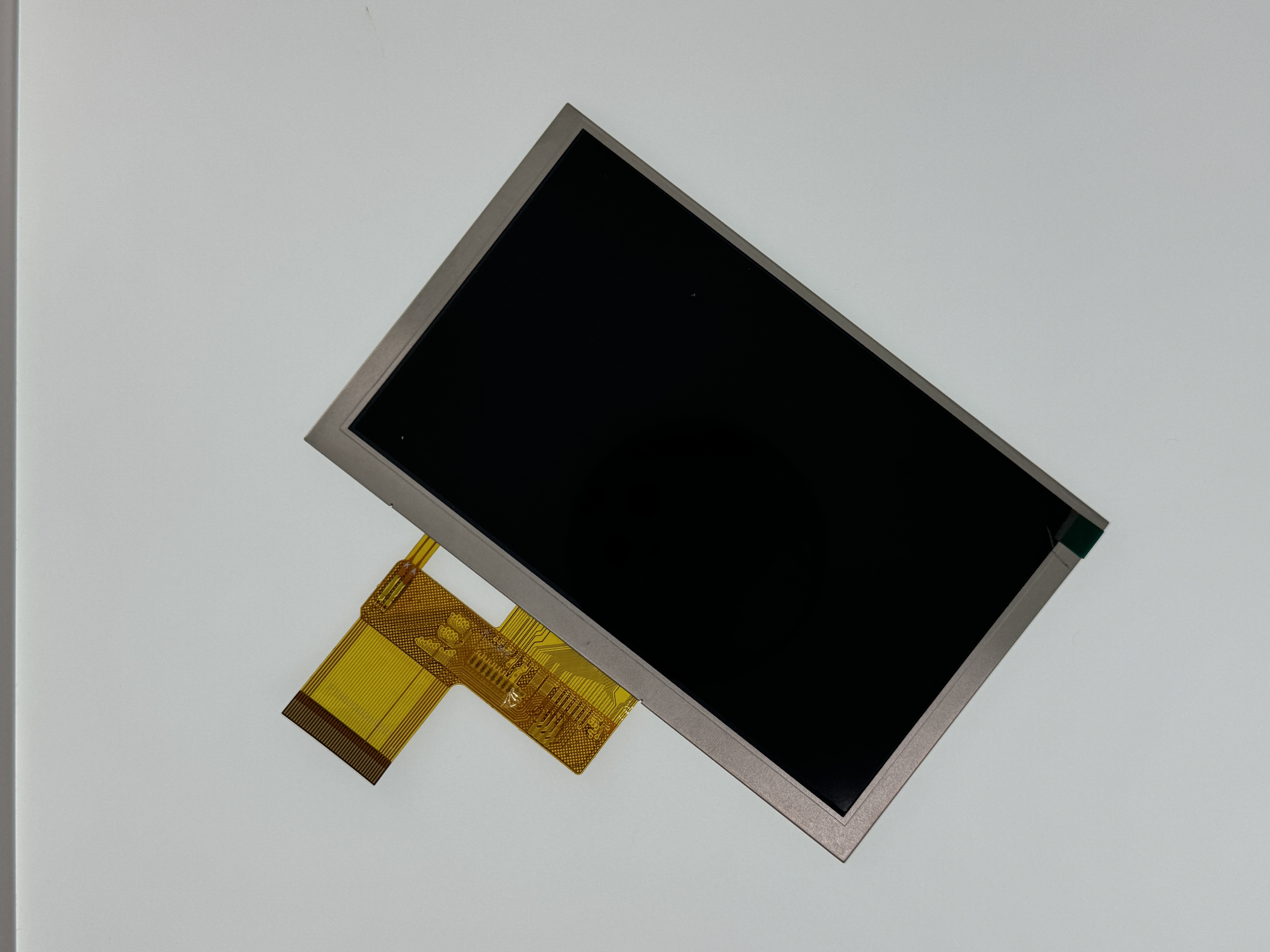

This display module is a transmissive type color active matrix TFT (Thin Film Transistor) Liquid Crystal Display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed
| Panel type | IPS TYPE |
|---|---|
| Panel size | 5.0 inch |
| Resolution | 800*480 dots |
| Outline dimension | 120.7*75.9*2.85 mm |
| Active area Size | 108*64.8 mm |
| Viewing direction | ALL |
| Viewing angle(U/D/L/R) | 80/80/80/80° (type) |
| Contrast ratio | 500:1 |
| Brightness | 300~1000 cd/m2 |
| Interface | RGB |
| PIN number | 40 PINS |
| Operating temperature | -20 to 70°C |
| Storage temperature | -30 to 80°C |
| With Touch Panel or NOT | Without |
