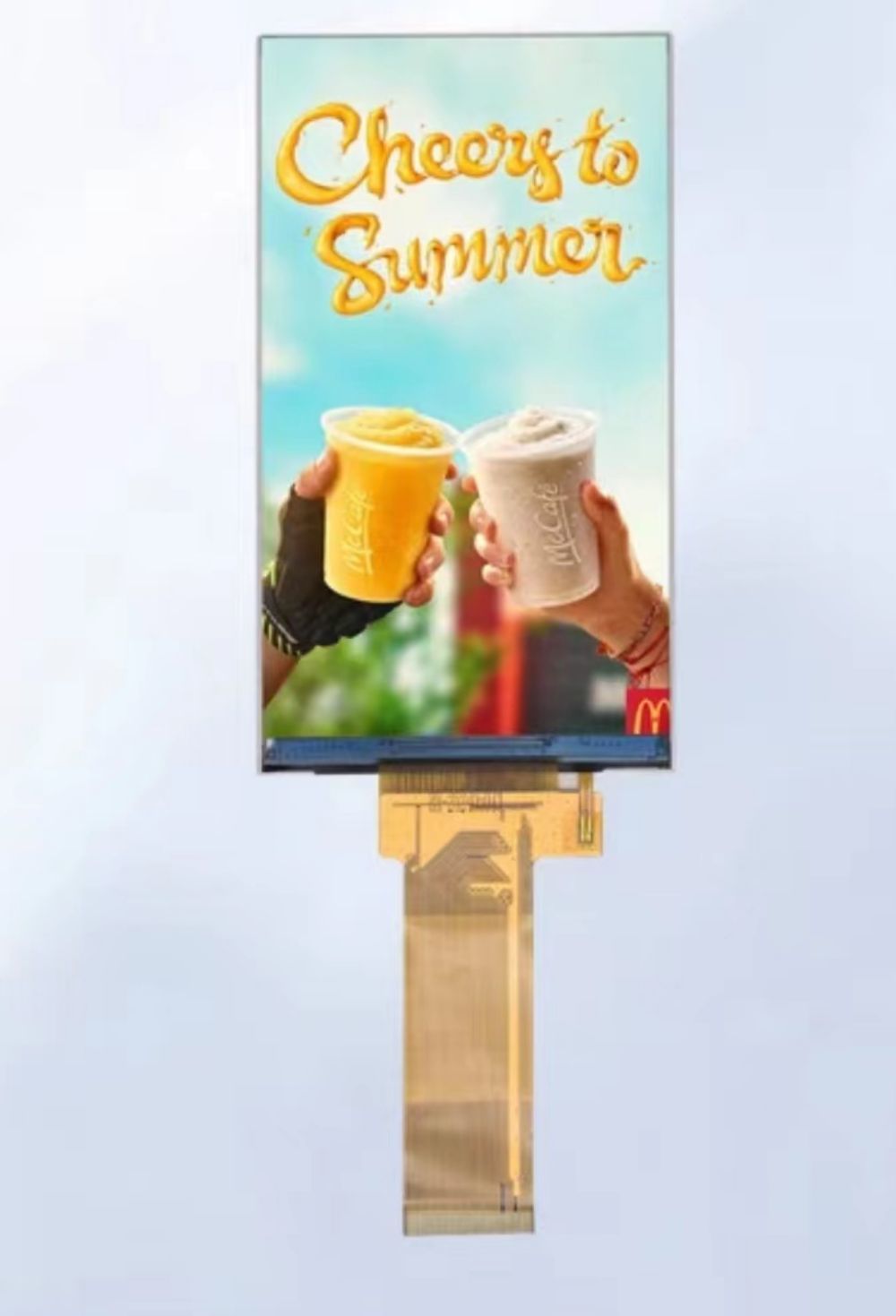

This display module is a transmissive type color active matrix TFT (Thin Film Transistor) Liquid Crystal Display (LCD) that uses amorphous silicon TFT
| Panel type | IPS TYPE |
|---|---|
| Panel size | 5.0 inch |
| Resolution | 480(R+G+B) *854 Dots |
| Outline dimension | 66.40(H) x120.05(V) x2.07mm |
| Active area Size | 61.56 (H) x109.53(V)mm |
| Viewing direction | ALL |
| Viewing angle(U/D/L/R) | 80/80/80/80° (type) |
| Contrast ratio | CR 1,000 Typ. |
| Brightness | 400 cd/m2 |
| Interface | MIPI |
| PIN number | 40 PINS |
| Operating temperature | -20 to 70°C |
| Storage temperature | -30 to 80°C |
| With Touch Panel or NOT | Without |
