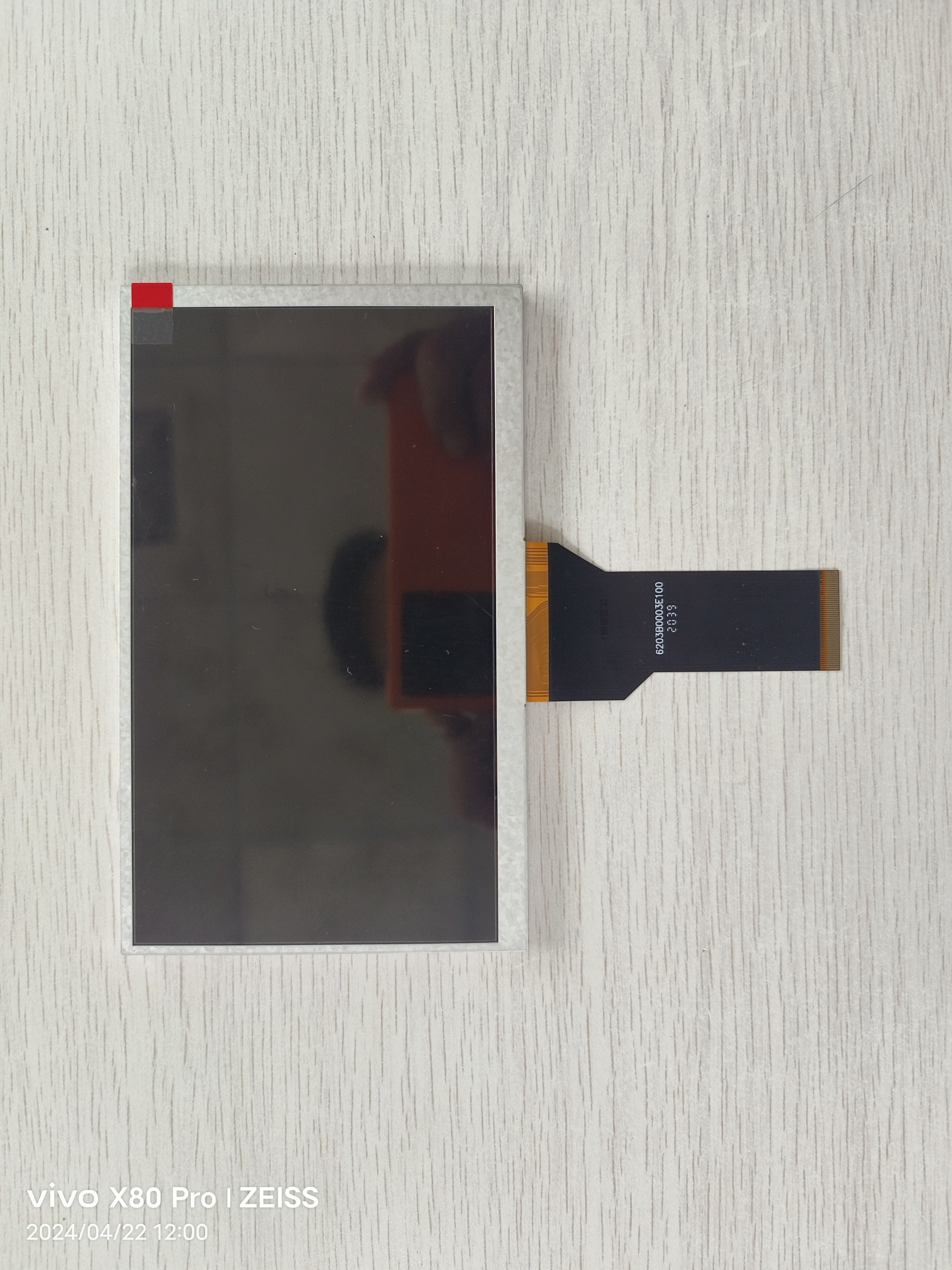

This display module is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed
| Panel type | IPS type |
|---|---|
| Panel size | 7.0 inch |
| Resolution | 1024*600 dots |
| Outline dimension | 165.0*100.0*5.5 mm |
| Active area Size | 154.21*85.92 mm |
| Viewing direction | ALL |
| Viewing angle(U/D/L/R) | 85/85/85/85° (type) |
| Contrast ratio | 900:1 |
| Brightness | 300~1000 cd/m2 |
| Interface | LVDS |
| PIN number | 40 PINS |
| Operating temperature | -20 to 70°C |
| Storage temperature | -30 to 80°C |
| With Touch Panel or NOT | Without |
