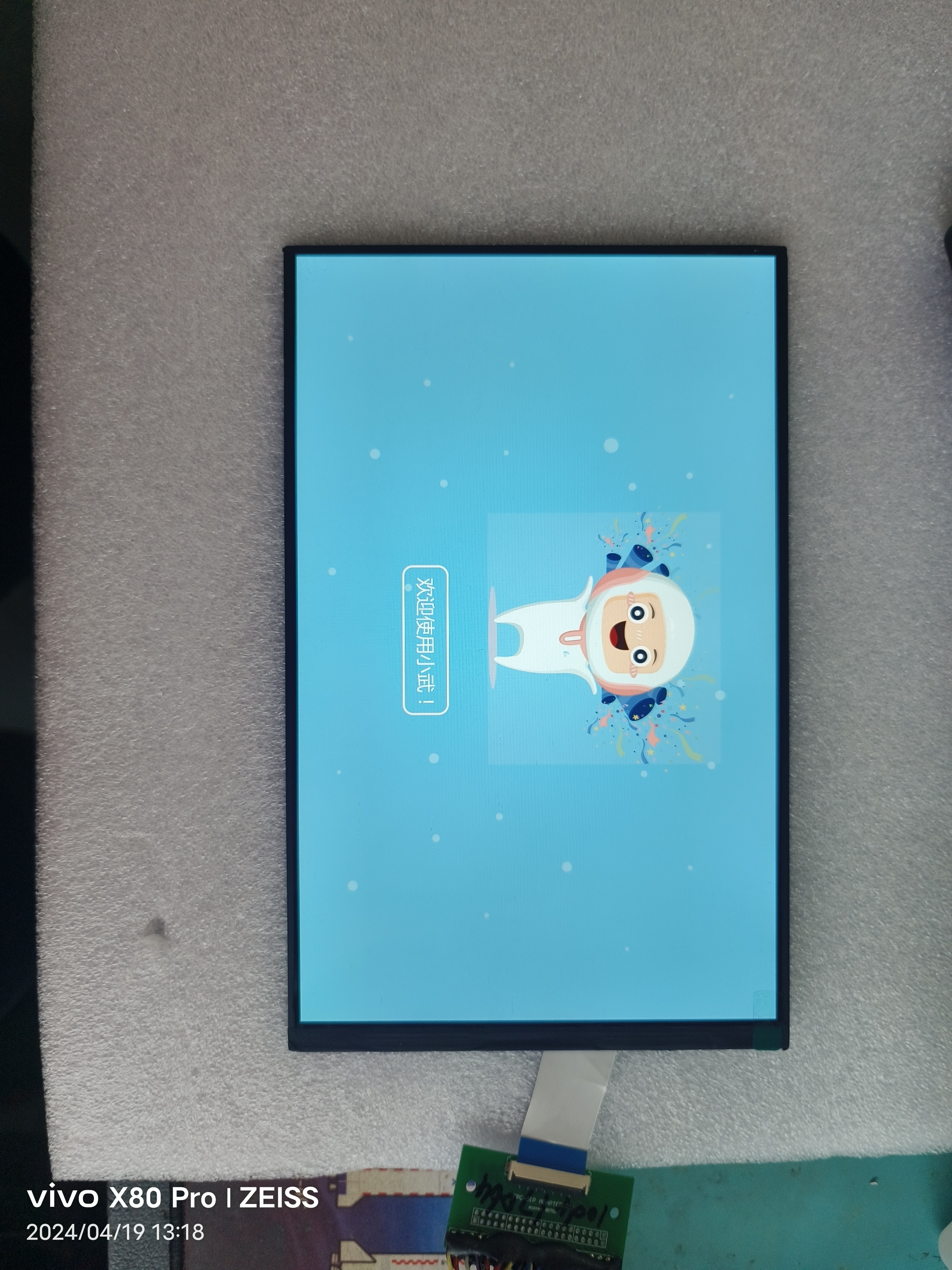

This display module is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed
| Panel type | IPS type |
|---|---|
| Panel size | 8.0 inch |
| Resolution | 1200*1920 dots |
| Outline dimension | 113.16*182.46*2.05 mm |
| Active area Size | 107.64*172.224 mm |
| Viewing direction | All |
| Viewing angle(U/D/L/R) | 89/89/89/89 degree |
| Contrast ratio | 900:1 |
| Brightness | 300 cd/m2 |
| Interface | MIPI |
| PIN number | 31 mipi |
| Operating temperature | -10 to +60 |
| Storage temperature | -20 to +70 |
| With Touch Panel or NOT | Without |
